Training and Visualizing a Decision Tree

Data

from sklearn.datasets import load_iris
import pandas as pd

iris = load_iris(as_frame=True)
iris_df: pd.DataFrame = iris.frame

# View 10 random samples
iris_df.sample(10, random_state=42)

	sepal length (cm)	sepal width (cm)	petal length (cm)	petal width (cm)	target
73	6.1	2.8	4.7	1.2	1
18	5.7	3.8	1.7	0.3	0
118	7.7	2.6	6.9	2.3	2
78	6.0	2.9	4.5	1.5	1
76	6.8	2.8	4.8	1.4	1
31	5.4	3.4	1.5	0.4	0
64	5.6	2.9	3.6	1.3	1
141	6.9	3.1	5.1	2.3	2
68	6.2	2.2	4.5	1.5	1
82	5.8	2.7	3.9	1.2	1

from sklearn.model_selection import train_test_split

X = iris.data.to_numpy()
y = iris.target.to_numpy()

X_train, X_test, y_train, y_test = train_test_split(
    X, y,
    test_size=0.2,
    random_state=42
)

Training a Decision Tree

from sklearn.tree import DecisionTreeClassifier
from sklearn.metrics import accuracy_score

# Define the model
tree_clf = DecisionTreeClassifier(
    max_depth=2,
    random_state=42
)

# Fit the model
tree_clf.fit(X_train, y_train)

# Evaluate on test dataset
y_pred = tree_clf.predict(X_test)
accuracy = accuracy_score(y_test, y_pred)
print(f"Accuracy: {accuracy:.3f}")

Accuracy: 0.967

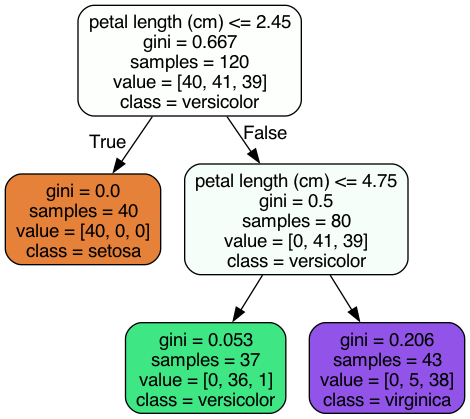

Visualization of the Tree

from sklearn.tree import export_graphviz

export_graphviz(
    tree_clf,
    out_file="out/decision_tree_on_iris_dataset.dot",
    feature_names=iris.feature_names,
    class_names=iris.target_names,

    # Each note will be represented as a rounded rectangle
    rounded=True,

    # The background will be colored
    filled=True
)

To convert the .dot file to an image file (e.g., PNG, JPEG), one can use the dot command provided by Graphviz, which is an open source graph visualization software.

Basic usage:

dot -T<image format> <input dot file path> -o <output image file path>

For example, the following command generates a PNG image:

dot -Tpng out/decision_tree_on_iris_dataset.dot -o out/decision_tree_on_iris_dataset.png

And similarly,

dot -Tjpg out/decision_tree_on_iris_dataset.dot -o out/decision_tree_on_iris_dataset.jpg

will create a JPEG image.

We prefer PNG since it has higher resolution.
